A Breath of Fresh Air Keeps Drug-Producing Cells Alive Longer

New device could improve the outcomes of cell-based therapies

 In 2021, a Northwestern University-led research team received a Defense Advanced Research Projects Agency (DARPA) contract worth up to $33 million to develop an implantable “living pharmacy” to control the human body’s sleep/wake cycles. Now, the researchers have completed a major step toward achieving this goal.

Jonathan Rivnay

In new work, researchers have developed a novel device that produces oxygen at the site in order to keep cells alive inside the self-contained implant. Oxygen is a major ingredient for keeping cells alive — and thriving — for longer periods of time inside of the implantable pharmacy. Because the longer cells can stay alive and healthy, the longer they can autonomously produce therapeutics for the body.

By using electricity to split water that the cells are already bathed in, the researchers were able to produce oxygen while avoiding the production of harmful byproducts such as chlorine or hydrogen peroxide. And by controlling the amount of electricity used, the researchers could change how much oxygen it produces.

In new experiments, the novel device (called the “electrocatalytic on-site oxygenator” or “ecO2”) kept cells (70-80 percent) alive for close to a month in low oxygen conditions in vitro, or weeks in vivo. Without ecO2, only about 20 percent of cells were alive after 10 days, but the researchers hypothesize that the cells would lose their ability to secrete drugs long before that. With advances in wireless power and communication, the researchers are confident that chronic operation over multiple months or more is within reach.

The research was published Nov. 10 in the journal Nature Communications.

“Our device can be used to improve the outcomes of cell-based therapies, which use biological cells to treat diseases or injuries in the body,” said Northwestern Engineering’s Jonathan Rivnay, who co-led the study. “Cell-based therapies could be used for replacing damaged tissues, for drug delivery, or augmenting the body's own healing mechanisms, thus opening opportunities in wound healing and treatments for obesity, diabetes, and cancer, for example. Generating oxygen on site is critical for many of these ‘biohybrid’ cell therapies. We need many cells to have sufficient production of therapeutics from those cells, thus there is a high metabolic demand. Our approach would integrate the ecO2 device to generate oxygen from the water itself.”

Our device can be used to improve the outcomes of cell-based therapies, which use biological cells to treat diseases or injuries in the body. Cell-based therapies could be used for replacing damaged tissues, for drug delivery, or augmenting the body's own healing mechanisms, thus opening opportunities in wound healing and treatments for obesity, diabetes, and cancer.

Jonathan RivnayProfessor of Biomedical Engineering and Materials Science and Engineering

Rivnay is a professor of biomedical engineering and materials science and engineering at the McCormick School of Engineering and principal investigator of the DARPA-funded NTRAIN (Normalizing Timing of Rhythms Across Internal Networks of Circadian Clocks) project. He co-led the new study with Tzahi Cohen-Karni, a professor of biomedical engineering and materials science and engineering at Carnegie Mellon University (CMU). The study’s co-first authors are Northwestern’s Abhijith Surendran and CMU’s Inkyu Lee.

A longer-lasting implant

Ultimately, the goal of the implantable “living pharmacy” strategy is to develop devices that never run out of drugs. Then, people will never have to worry about remembering to take their medicine or inject therapeutics. But, for this to work successfully, the implant needs to last for long periods of time without needing to be refilled.

Combining synthetic biology with bioelectronics, Northwestern leads a collaboration with Rice University biomedical engineering professor Omid Veiseh to produce the therapeutics on site within the device. Keeping these engineered cells alive is a crucial step in the development of these potentially life-saving devices. Although previous research has explored strategies for delivering oxygen to cells, those methods used bulky equipment that is impractical for use inside the human body.

“Some approaches introduce gaseous oxygen from outside the body to tackle this problem. This is akin to using a scuba tank while diving,” Surendran said. “It is bulky. You have to carry it around with you. The air can run out, and there is a high risk of gas embolism.”

Ditching the scuba tank

To bypass the need for impractical equipment, the researchers turned to water-splitting, a popular strategy for energy conversion and storage. For example, other researchers have explored splitting water into hydrogen and oxygen in order to use hydrogen as fuel. However, these technologies focus on water splitting at alkaline or acidic conditions. Rivnay’s team, on the other hand, is more interested in oxygen production at conditions comparable to those within the human body.

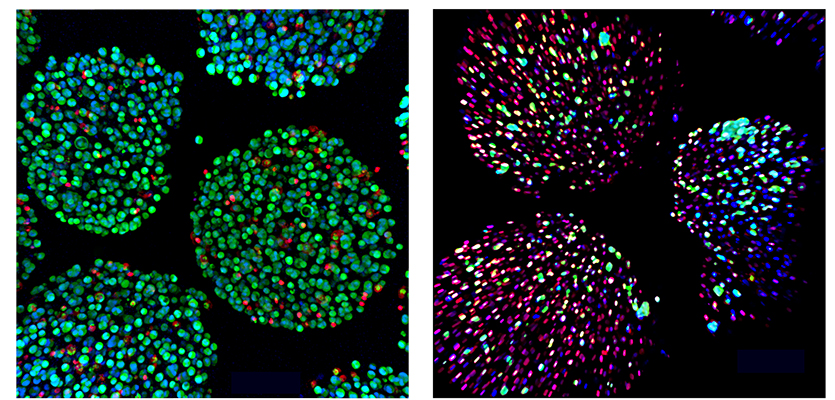

A side-by-side comparison of cells supported by the oxygenation device (left) and cells without the device (right). Dead cells shown in red; living cells in green.

The secret behind the team’s new ecO2 device is sputtered iridium oxide, a successful electrocatalyst that has also been used in biomedical applications. Inside the device, the cells are already living in a fluid of water, salts, and nutrients. Iridium oxide helps drive an electrochemical reaction at low voltage to deliver oxygen using the already-available water in biofluids. The electricity splits the water into hydrogen and oxygen.

“It is as simple as a Chemistry 101 experiment we all did as kids,” Rivnay said. “You pass electricity through water and bubbles form at the metals, and the water splits into oxygen and hydrogen. We are doing this but in a smarter manner. Using unique materials allows more efficient and low energy production of oxygen. And in our device, we aren’t forming oxygen bubbles. We operate our devices under conditions where the oxygen generated is dissolved in water — without bubbles.”

In experiments, ecO2 generated enough oxygen to keep densely packed cells (60,000 cells per cubic millimeter) alive in hypoxic conditions. These results prove that ecO2 devices can be readily integrated into bioelectronic platforms, enabling high cell loadings in smaller devices with broad applicability.

Without ecO2, control cells met a swift demise.

In our device, we aren’t forming oxygen bubbles. We operate our devices under conditions where the oxygen generated is dissolved in water — without bubbles. Jonathan Rivnay

“The cell density used in our study is about six times higher than the average cell density of pancreatic islets reported in the literature,” Surendran said. “Normal oxygen concentration in blood is not sufficient to sustain their viability for extended periods. After the first week, 70 percent of the cells in control devices lost functionality. The remaining 30 percent took about 10 more days to lose functionality.”

Next, Rivnay and collaborators will focus on long-term deployment of ecO2. Specifically, they are working on highly stable materials that can operate inside the body for months at time — eventually using this approach to treat chronic disease conditions.

“We believe this technology will enable smaller, more potent cell therapy and regulated cell-therapy devices,” Rivnay said. “Our goal is to translate this technology to clinic. We are currently exploring various disease models.”
